Strong C-Track Design
Delivers increased strength over a U-track design during security testing as well as installation - preventing the track collapsing against the profile, enabling smooth, consistent operation.
ADVANCE™
High Security Twin Cam
Progressive Hardware. Forward-Thinking Technology.
For the Aluminium Sector
High Security Twin Cam Window Locking System
intelligently designed for high specification windows
with slim sight-lines.

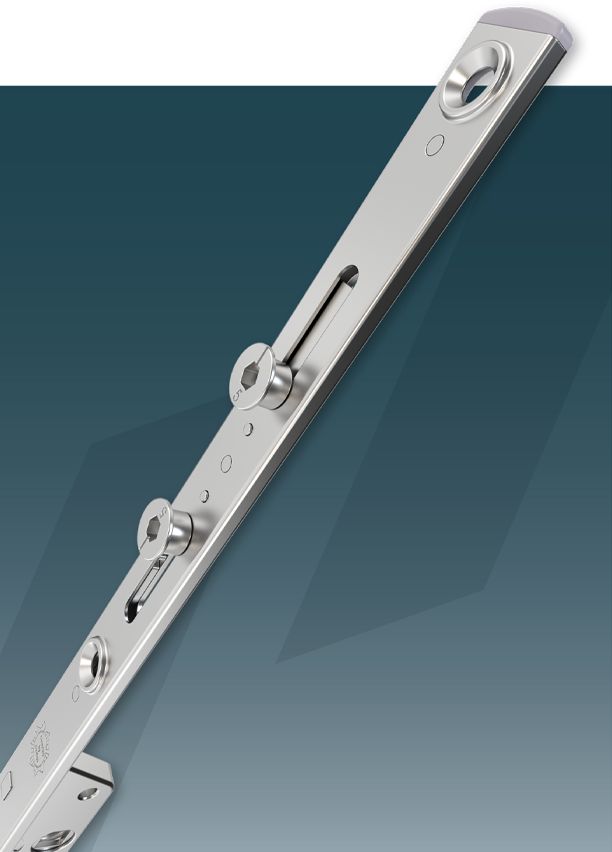

The Advance™ Twin Cam Espag delivers high quality, high performance and high security.
Designed for slim sight-lines the espag features twin stainless steel mushroom cams to secure the window. The twin cam pincer-like operation provides effective anti-jemmy resistance.
Available in two cam heights - 5.5mm and 7mm.
Manufactured from high quality grade 304 stainless steel with a flawless matt finish.
Designed for Aluminium profile systems.
Details, Installation & Operation
Slim & Exceptionally Strong.
We know that gearboxes failing is a common issue with other espags - so ours
has been ‘break tested’ beyond 40Nm for exceptional strength during operation.
Slim and offset, the gearbox is only 6mm wide and easy to install into slim profile systems with minimal sightlines. Available in 20mm backset.
Anti-jemmy Twin Cams
For High Security
Stainless steel mushroom cams,
compression adjustable (+/- 0.5mm)Easy Identification
Backset size & handing indicator (when in open position) are visible on the gearbox
Concealed Gears
To protect from dust & debris,
& to ensure long-lasting smooth operationNylon Caps
Provide additional support around the end fixing point on the faceplate & offer protection from an exposed edge whilst enhancing aesthetics for a premium finish.

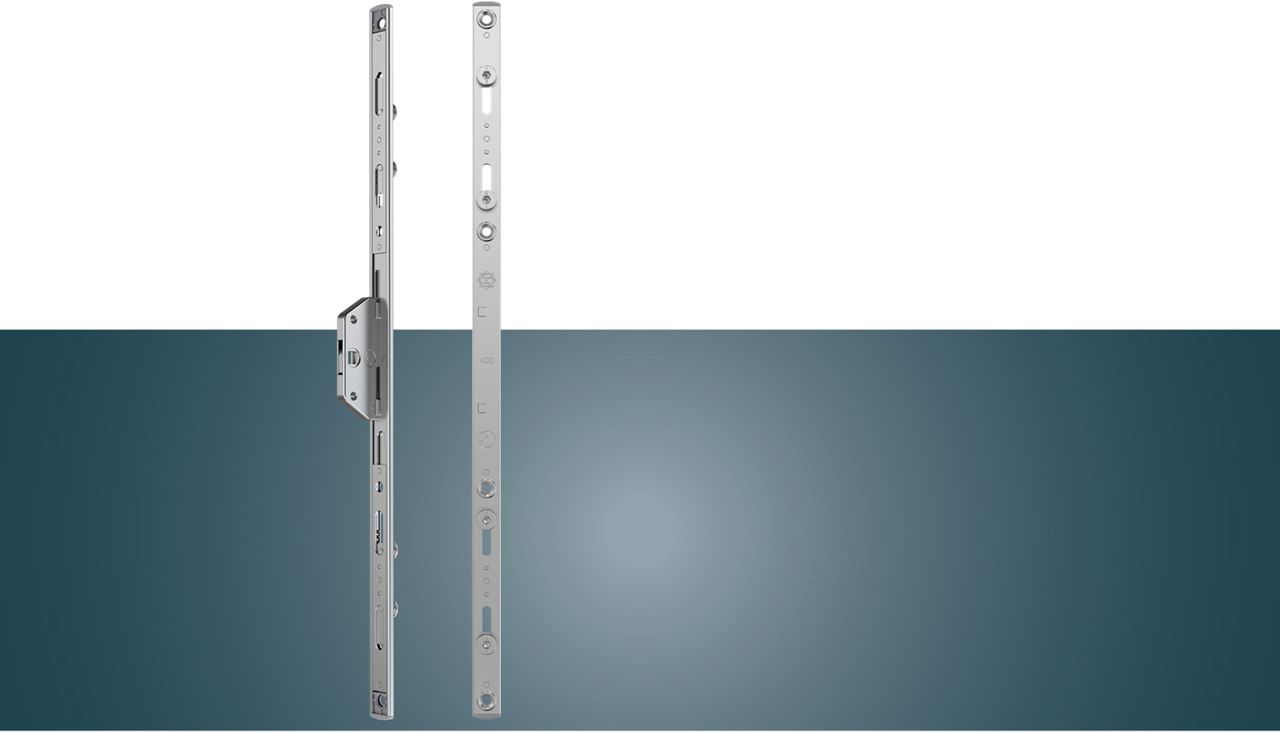

Advance™ Specifiation
Stainless Steel Grade 304
Faceplate for superior corrosion resistance & in a premium matt finish
Enhanced Security
Twin cam, anti-jemmy protection
Handed Offset Gearbox
Only 6mm wide for easy installation into slim systems
Secured by Design
Logo stamped onto faceplate to highlight Police Preferred Specification & give homeowner peace of mind
Strong Gearbox
Tested beyond 40Nm to resist over-stressing & maintain smooth operation
Size
Visible on faceplate for easy identification
Quality Mark
Mila Dot stamped onto faceplate
Considered Fixing Points
Countersunk for enhanced aesthetics
Accreditations and Guarantees
As well as the product information included, please see our downloadable literature which includes technical drawings and part numbers.
