Yale Quartus Espag Handles

The Yale Quartus Espag Handle offers homeowners the ultimate solution with its aesthetically pleasing design and user-friendly functionality, making it the ideal choice for aluminium and uPVC windows.



Available in inline and offset variants as well as a wide range of finishes, this handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.

Features

  • Push to unlatch Yale branded mechanism
  • Key operated locking mechanism
  • Key deadlocking for added security and safety
  • Non-locking push to unlatch version in Black, White and Green for egress applications available
  • Aesthetically pleasing as part of the suited range of window hardware
  • Available in inline and offset variants

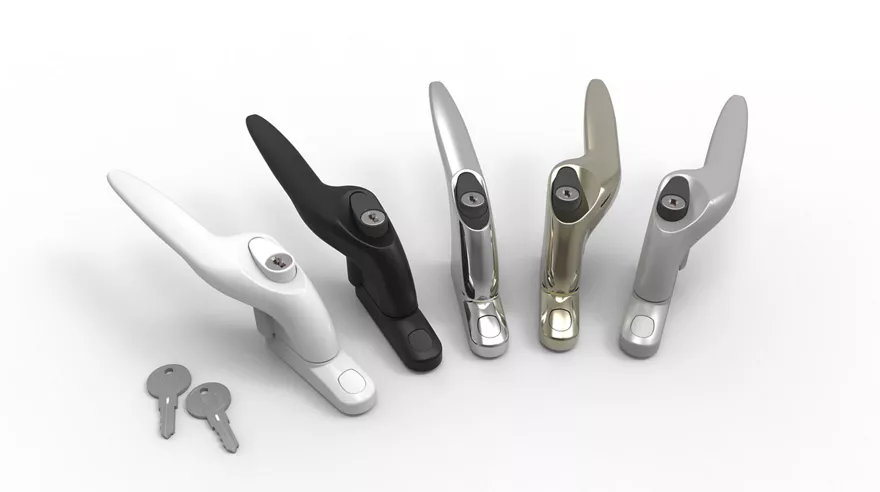

  • Available in Satin Black, Chrome, Champagne Gold, Silver, and White finishes
  • Available with a variety of spindle lengths ranging from 10mm - 75mm to accommodate a wide range of window profiles*
  • Fixed spindle supplied as standard
  • Supplied with screws, colour matched screw caps and cylinder plug to achieve a non-locking solution
  • Supplied with a Yale branded key
  • Spare keys and screw cover caps available upon request

Guarantee and Standards

  • 10-year Mechanical Guarantee
  • 10-year Surface Finish Guarantee
  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
  • Lifetime Security Guarantee when used with other Yale security hardware**

* Other sizes available upon request

** Terms and conditions apply. Please see yaledws.co.uk for further details
  • ProductProduct ID
    YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD LHYBC15CGL
    YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD RHYBC15CGR
    YALE QUARTUS LOCKING 15MM CHROME LHYBC15CHL
    YALE QUARTUS LOCKING 15MM CHROME RHYBC15CHR
    YALE QUARTUS LOCKING 15MM SATIN BLACK LHYBC15SBL
    YALE QUARTUS LOCKING 15MM SATIN BLACK RHYBC15SBR
    YALE QUARTUS LOCKING 15MM SILVER LHYBC15SLL
    YALE QUARTUS LOCKING 15MM SILVER RHYBC15SLR
    YALE QUARTUS LOCKING 15MM WHITE LHYBC15WHL
    YALE QUARTUS LOCKING 15MM WHITE RHYBC15WHR
    YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD LHYBC20CGL
    YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD RHYBC20CGR
    YALE QUARTUS LOCKING 20MM CHROME LHYBC20CHL
    YALE QUARTUS LOCKING 20MM CHROME RHYBC20CHR
    YALE QUARTUS LOCKING 20MM SATIN BLACK LHYBC20SBL
    YALE QUARTUS LOCKING 20MM SATIN BLACK RHYBC20SBR
    YALE QUARTUS LOCKING 20MM SILVER LHYBC20SLL
    YALE QUARTUS LOCKING 20MM SILVER RHYBC20SLR
    YALE QUARTUS LOCKING 20MM WHITE LHYBC20WHL
    YALE QUARTUS LOCKING 20MM WHITE RHYBC20WHR
    YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD LHYBC30CGL
    YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD RHYBC30CGR
    YALE QUARTUS LOCKING 30MM CHROME LHYBC30CHL
    YALE QUARTUS LOCKING 30MM CHROME RHYBC30CHR
    YALE QUARTUS LOCKING 30MM SATIN BLACK LHYBC30SBL
    YALE QUARTUS LOCKING 30MM SATIN BLACK RHYBC30SBR
    YALE QUARTUS LOCKING 30MM SILVER LHYBC30SLL
    YALE QUARTUS LOCKING 30MM SILVER RHYBC30SLR
    YALE QUARTUS LOCKING 30MM WHITE LHYBC30WHL
    YALE QUARTUS LOCKING 30MM WHITE RHYBC30WHR
    YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD LHYBC35CGL
    YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD RHYBC35CGR
    YALE QUARTUS LOCKING 35MM CHROME LHYBC35CHL
    YALE QUARTUS LOCKING 35MM CHROME RHYBC35CHR
    YALE QUARTUS LOCKING 35MM SATIN BLACK LHYBC35SBL
    YALE QUARTUS LOCKING 35MM SATIN BLACK RHYBC35SBR
    YALE QUARTUS LOCKING 35MM SILVER LHYBC35SLL
    YALE QUARTUS LOCKING 35MM SILVER RHYBC35SLR
    YALE QUARTUS LOCKING 35MM WHITE LHYBC35WHL
    YALE QUARTUS LOCKING 35MM WHITE RHYBC35WHR
    YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD LHYBC40CGL
    YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD RHYBC40CGR
    YALE QUARTUS LOCKING 40MM CHROME LHYBC40CHL
    YALE QUARTUS LOCKING 40MM CHROME RHYBC40CHR
    YALE QUARTUS LOCKING 40MM SATIN BLACK LHYBC40SBL
    YALE QUARTUS LOCKING 40MM SATIN BLACK RHYBC40SBR
    YALE QUARTUS LOCKING 40MM SILVER LHYBC40SLL
    YALE QUARTUS LOCKING 40MM SILVER RHYBC40SLR
    YALE QUARTUS LOCKING 40MM WHITE LHYBC40WHL
    YALE QUARTUS LOCKING 40MM WHITE RHYBC40WHR
    YALE QUARTUS LOCKING 50MM WHITE LHYBC50WHL
    YALE QUARTUS LOCKING 50MM WHITE RHYBC50WHR
    YALE QUARTUS LOCKING 55MM SILVER LHYBC55SLL
    YALE QUARTUS LOCKING 55MM SILVER RHYBC55SLR
    YALE QUARTUS LOCKING 65MM SILVER LHYBC65SLL
    YALE QUARTUS LOCKING 65MM SILVER RHYBC65SLR
    YALE QUARTUS LOCKING 75MM SILVER LHYBC75SLL
    YALE QUARTUS LOCKING 75MM SILVER RHYBC75SLR
    YALE QUARTUS LOCKING 10MM CHAMPAGNE GOLD INLINEYBI10CG
    YALE QUARTUS LOCKING 10MM CHROME INLINEYBI10CH
    YALE QUARTUS LOCKING 10MM SATIN BLACK INLINEYBI10SB
    YALE QUARTUS LOCKING 10MM SILVER INLINEYBI10SL
    YALE QUARTUS LOCKING 10MM WHITE INLINEYBI10WH
    YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD INLINEYBI15CG
    YALE QUARTUS LOCKING 15MM CHROME INLINEYBI15CH
    YALE QUARTUS LOCKING 15MM SATIN BLACK INLINEYBI15SB
    YALE QUARTUS LOCKING 15MM SILVER INLINEYBI15SL
    YALE QUARTUS LOCKING 15MM WHITE INLINEYBI15WH
    YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD INLINEYBI20CG
    YALE QUARTUS LOCKING 20MM CHROME INLINEYBI20CH
    YALE QUARTUS LOCKING 20MM SATIN BLACK INLINEYBI20SB
    YALE QUARTUS LOCKING 20MM SILVER INLINEYBI20SL
    YALE QUARTUS LOCKING 20MM WHITE INLINEYBI20WH
    YALE QUARTUS LOCKING 25MM WHITE INLINEYBI25WH
    YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD INLINEYBI30CG
    YALE QUARTUS LOCKING 30MM CHROME INLINEYBI30CH
    YALE QUARTUS LOCKING 30MM SATIN BLACK INLINEYBI30SB
    YALE QUARTUS LOCKING 30MM SILVER INLINEYBI30SL
    YALE QUARTUS LOCKING 30MM WHITE INLINEYBI30WH
    YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD INLINEYBI35CG
    YALE QUARTUS LOCKING 35MM CHROME INLINEYBI35CH
    YALE QUARTUS LOCKING 35MM SATIN BLACK INLINEYBI35SB
    YALE QUARTUS LOCKING 35MM SILVER INLINEYBI35SL
    YALE QUARTUS LOCKING 35MM WHITE INLINEYBI35WH
    YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD INLINEYBI40CG
    YALE QUARTUS LOCKING 40MM CHROME INLINEYBI40CH
    YALE QUARTUS LOCKING 40MM SATIN BLACK INLINEYBI40SB
    YALE QUARTUS LOCKING 40MM SILVER INLINEYBI40SL
    YALE QUARTUS LOCKING 40MM WHITE INLINEYBI40WH
    YALE QUARTUS LOCKING 50MM CHAMPAGNE GOLD INLINEYBI50CG
    YALE QUARTUS LOCKING 50MM CHROME INLINEYBI50CH
    YALE QUARTUS LOCKING 50MM SATIN BLACK INLINEYBI50SB
    YALE QUARTUS LOCKING 50MM SILVER INLINEYBI50SL
    YALE QUARTUS LOCKING 50MM WHITE INLINEYBI50WH
    YALE QUARTUS NON LOCKING 40MM WHITE LHYC40WHL
    YALE QUARTUS NON LOCKING 40MM WHITE RHYC40WHR
    YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE LHYEC40WHL
    YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE RHYEC40WHR
    YALE QUARTUS EGRESS GREEN BUTTON 30MM WHITE INLINEYEI30WH
    YALE QUARTUS EGRESS GREEN BUTTON 35MM WHITE INLINEYEI35WH
    YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE INLINEYEI40WH
    YALE QUARTUS NON LOCKING 15MM CHAMPAGNE GOLD INLINEYI15CG
    YALE QUARTUS NON LOCKING 15MM WHITE INLINEYI15WH
    YALE QUARTUS NON LOCKING 20MM WHITE INLINEYI20WH
    YALE QUARTUS NON LOCKING 30MM CHROME INLINEYI30CH
    YALE QUARTUS NON LOCKING 30MM WHITE INLINEYI30WH
    YALE QUARTUS NON LOCKING 35MM CHAMPAGNE GOLD INLINEYI35CG
    YALE QUARTUS NON LOCKING 35MM CHROME INLINEYI35CH
    YALE QUARTUS NON LOCKING 35MM SILVER INLINEYI35SL
    YALE QUARTUS NON LOCKING 35MM WHITE INLINEYI35WH
    YALE QUARTUS NON LOCKING 40MM CHAMPAGNE GOLD INLINEYI40CG
    YALE QUARTUS NON LOCKING 40MM WHITE INLINEYI40WH
    YALE QUARTUS NON LOCKING 50MM CHAMPAGNE GOLD INLINEYI50CG
    YALE QUARTUS NON LOCKING 50MM CHROME INLINEYI50CH
    YALE QUARTUS NON LOCKING 50MM SATIN BLACK INLINEYI50SB
    YALE QUARTUS NON LOCKING 50MM SILVER INLINEYI50SL
    YALE QUARTUS NON LOCKING 50MM WHITE INLINEYI50WH
