Yale Stable Door Lock Composite
A composite and timber stable door locking solution incorporating two independent 45mm backset security locks, securing both top and bottom leafs.
Auxiliary units
• Lockmaster signature hook and anti-lift pins used on top and bottom lock sections
Centre units

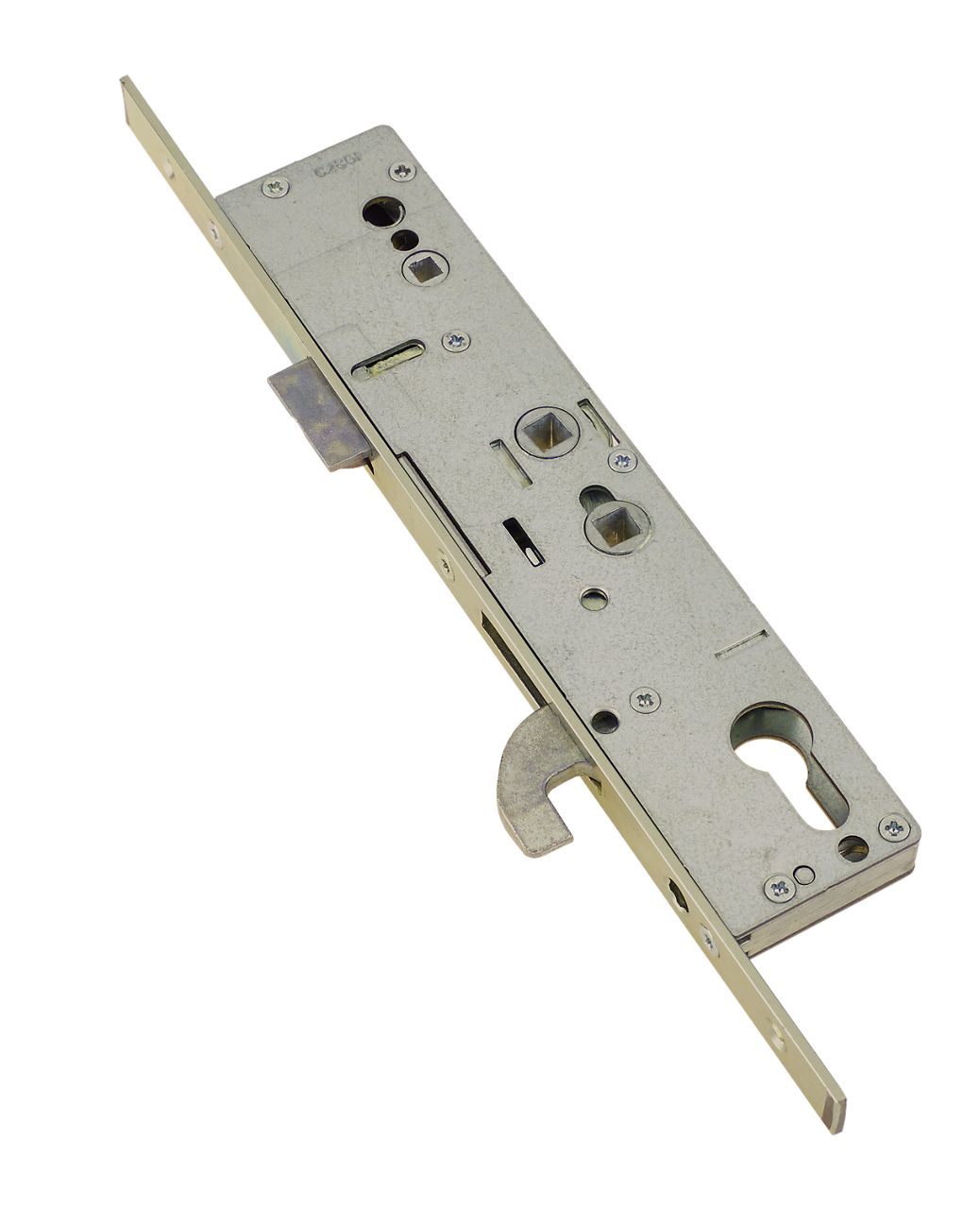

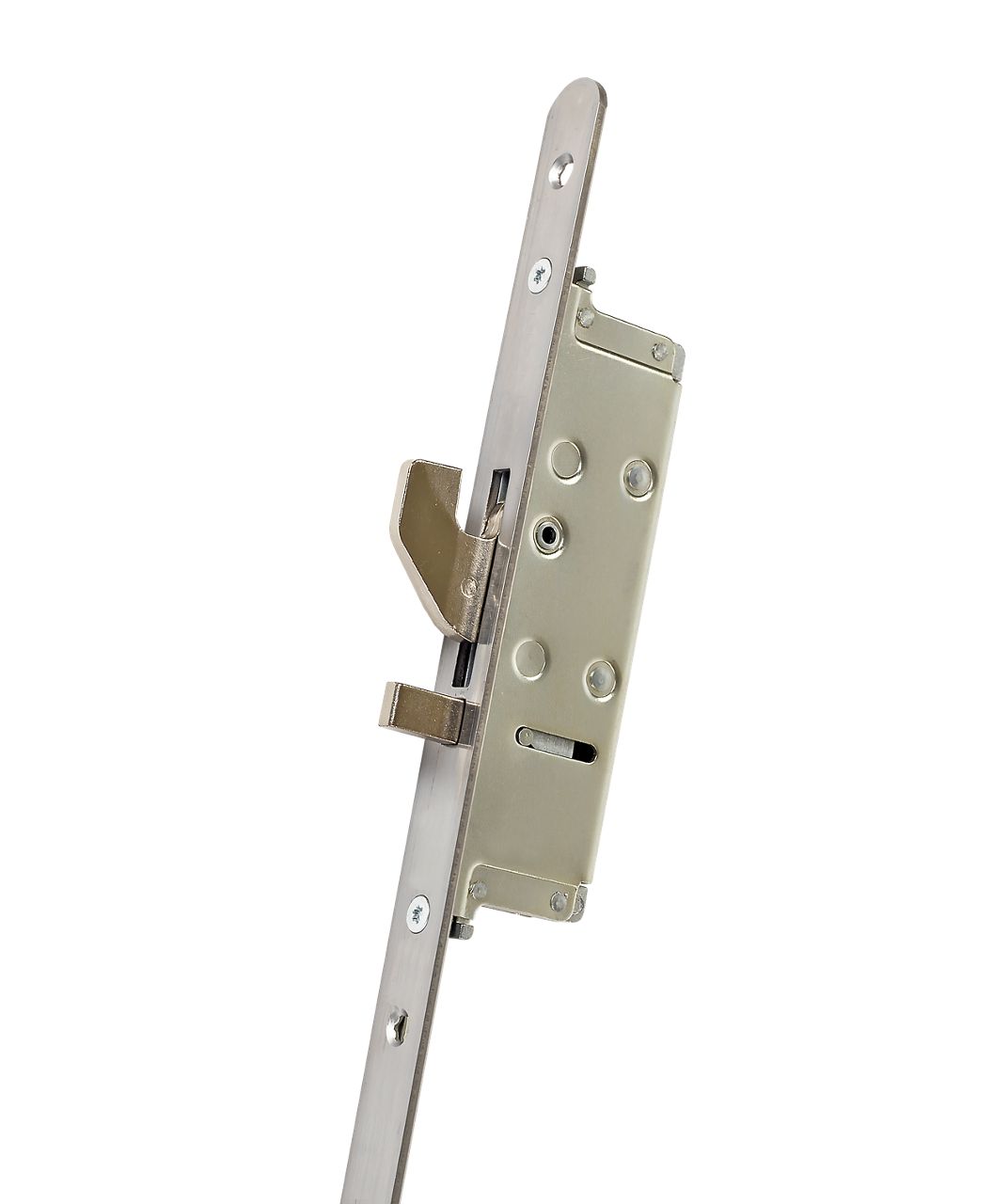

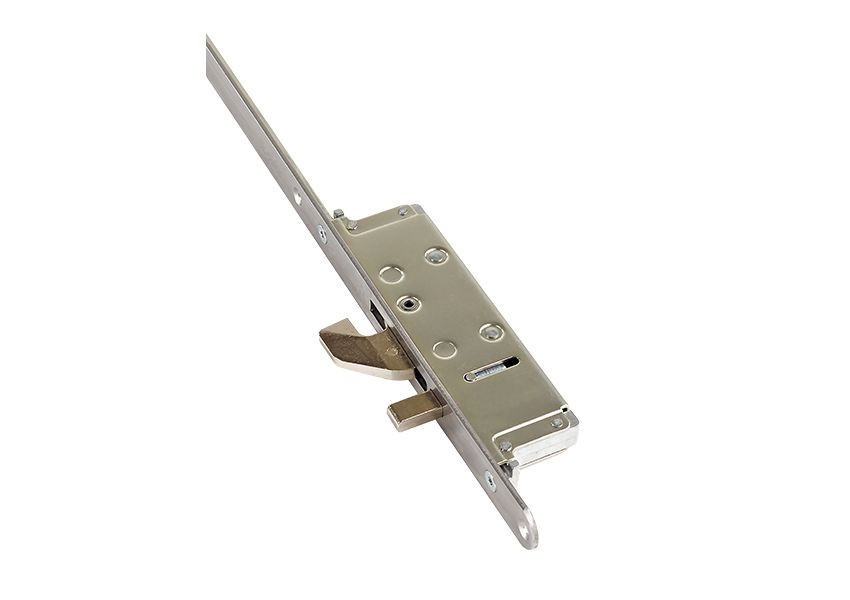

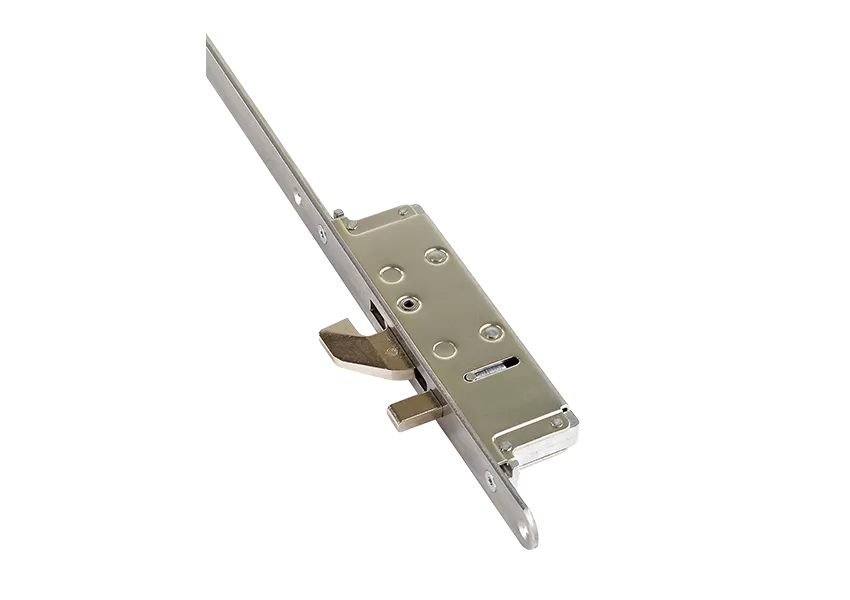

• A combination of Lockmaster 21 hook centre unit and Lockmaster KeyTurn deadbolt centre unit
• Top leaf: Lockmaster 21 hook centre configured for a lever door handle Bottom leaf: Lockmaster KeyTurn deadbolt centre
• 45mm backset
• Top leaf: Reversible latch
• Top leaf: Includes push-in snib feature to prevent accidental lock-outs
• PZ92 centre case
Faceplate
• Yale branded
• 430 stainless steel
• 20mm rounded ended faceplates
Individual keeps
• Fully adjustable keeps to suit both top and bottom lock option
Product 45mm Composite Stable door Lock- Top Lock (When using flush bolts) 45mm Composite Stable door Lock- Bottom Lock (When using flush bolts) 35mm Composite Stable Door Lock- Top Lock 35mm Composite Stable Door Lock with Adjustable Rollerbolt- Bottom Lock 45mm Composite Stable door Lock- Top Lock 45mm Composite Stable door Lock with Adjustable Rollerbolt- Bottom Lock Product ID YSDL001-T-45H-27 YSDL001-B-45D-27 YSDL005-T-35H-27 YSDL006-B-35D-27 YSDL005-T-45H-27 YSDL006-B-45D-27
