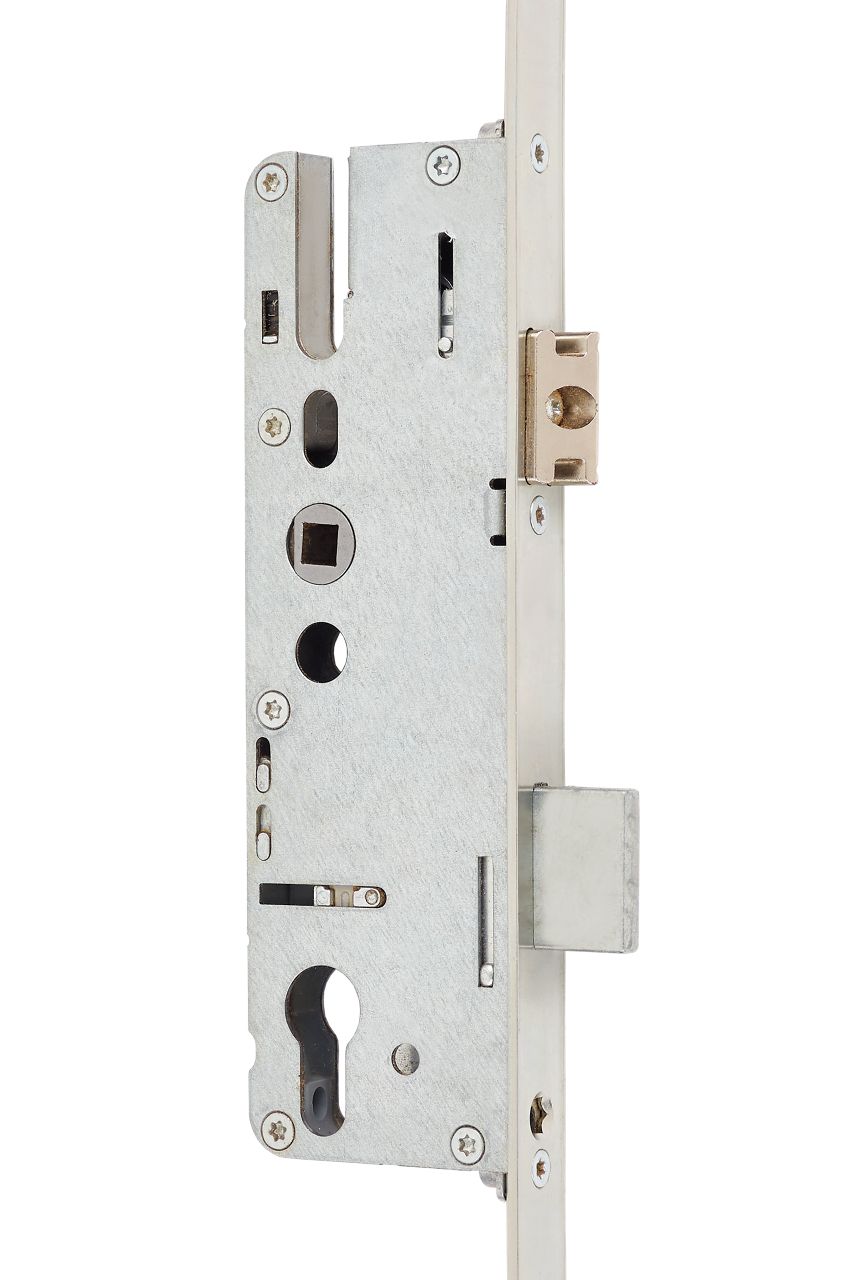

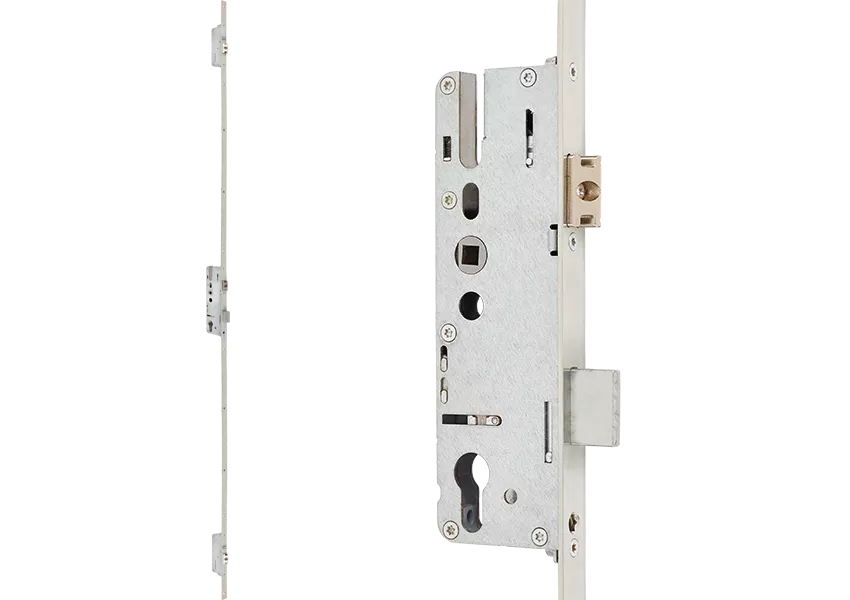

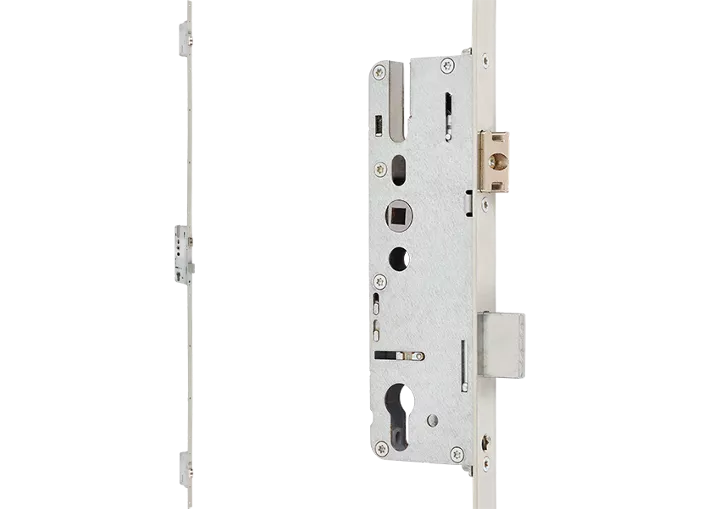

Yale Auto Engage

A versatile auto engage locking mechanism suitable for key operation and lever exit doors.

Locking Points

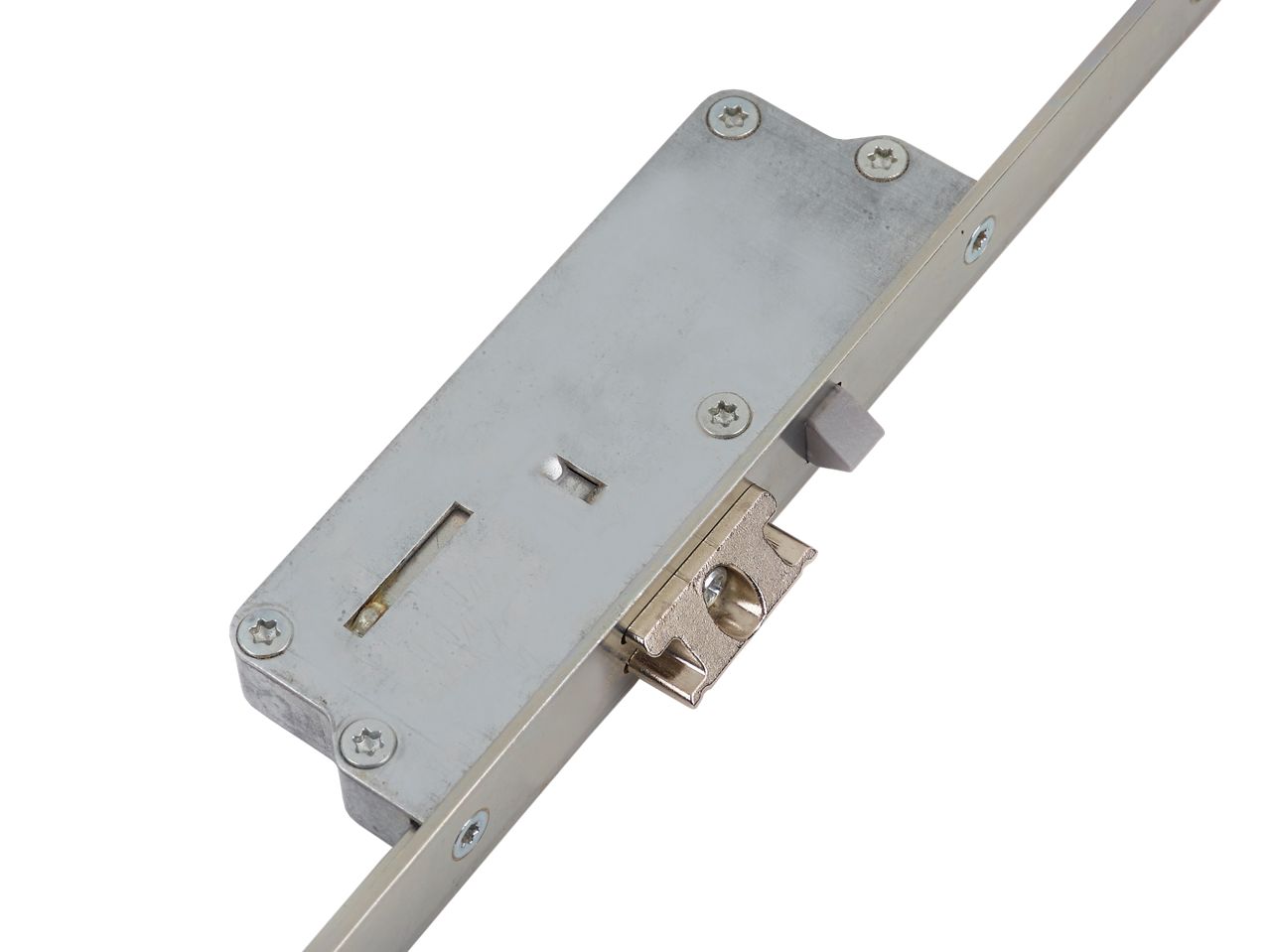

• Auto engaging key retract locking mechanism
• Security latches automatically fire upon closure offering 20mm deadbolt engagement
• Fully reversible security latches

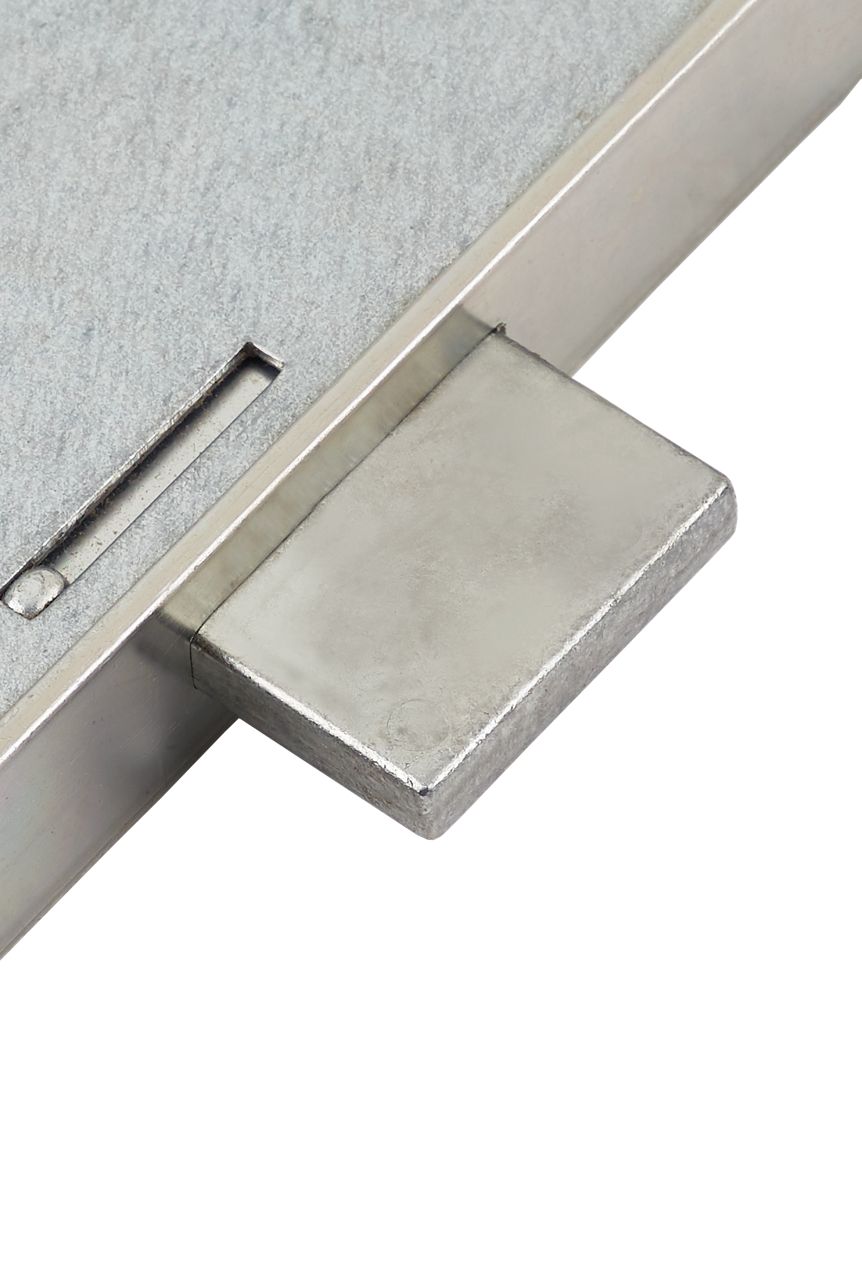

• Central deadbolt provides independent security with a 20mm throw
• Available in 35mm and 45mm backset options
• Suitable for composite and timber doors
• Designed to be compatible with a wide range of decorative furniture sets

Faceplate

• Yale branded
• Square or radius end options
• 16mm or 20mm faceplate options
• Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available

Specification

• PAS 24:2016 security tested
• Designed to achieve FD60
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain
• Meets the requirements of FD30 & FD60 when tested as part of a door set

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

• Lockcase: Galvanised Mild Steel
• Faceplate: 430 Stainless steel/ Austenitic 304 Stainless Steel
• Deadbolt and Latchbolt: Zinc Alloy Castings/Austenitic 304 Stainless Steel
• Keeps: Mild Steel/Austenitic 304 Stainless Steel

Packaging

Locks: 5 per box

Maintenance

Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
