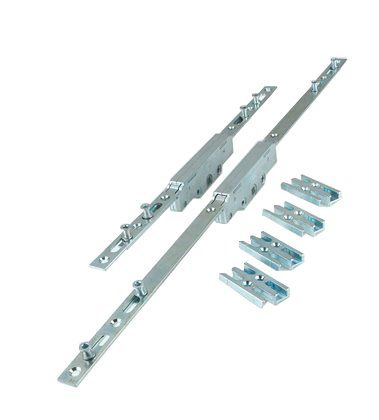

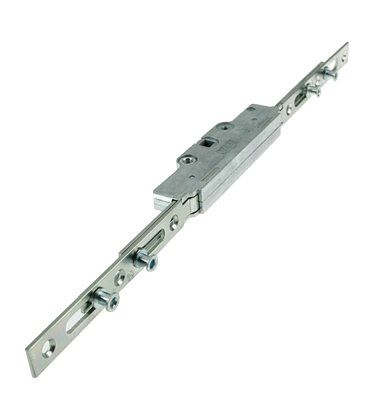

Yale Encloser

Employing innovative bi-directional locking technology, the Yale Encloser window lock delivers Secured by Design security performance, together with extremely fast fitting and absolutely no cropping.

Designed to work with all uPVC window systems and suitable for all sash sizes from 270mm to 1400mm, the Yale Encloser is a true ‘fast fit’ high performance window lock solution.

Features:

  • Bi-directional locking cams
  • 7.7mm, 9mm and 10.5mm mushroom cam heights 20mm and 22mm backset variants
  • Simple compression adjustment
  • Suitable for sash sizes 270mm to 1400mm
  • 7 models covering 2, 4 and 6 mushrooms
  • Suitable for use on PVC, Aluminium and Timber

Specifications:

  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to 50,000 cycles
  • BBA Certification
  • Meets requirements of PAS 24:2016

  • 10-year Mechanical Guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply
  • ProductProduct ID
     7.7 Cam - 20BS Assembly
    Size 1 - 7.7mm 4 Cam 20BSYWBL1-2007-19
    Size 2 - 7.7mm 4 Cam 20BSYWBL2-2007-19
    Size 3 - 7.7mm 4 Cam 20BSYWBL3-2007-19
    Size 4 - 7.7mm 6 Cam 20BSYWBL4-2007R-19
    Size 5 - 7.7mm 6 Cam 20BSYWBL5-2007R-19
    Size 6 - 7.7mm 6 Cam 20BSYWBL6-2007R-19
    Size 7 - 7.7mm 6 Cam 20BSYWBL7-2007R-19
     9.0 Cam - 20BS Assembly
    Size 1 - 9.0mm 4 Cam 20BSYWBL1-2009-19
    Size 2 - 9.0mm 4 Cam 20BSYWBL2-2009-19
    Size 3 - 9.0mm 4 Cam 20BSYWBL3-2009-19
    Size 4 - 9.0mm 6 Cam 20BSYWBL4-2009R-19
    Size 5 - 9.0mm 6 Cam 20BSYWBL5-2009R-19
    Size 6 - 9.0mm 6 Cam 20BSYWBL6-2009R-19
    Size 7 - 9.0mm 6 Cam 20BSYWBL7-2009R-19
     10.5 Cam - 20BS Assembly
    Size 1 - 10.5mm 4 Cam 20BSYWBL1-2010-19
    Size 2 - 10.5mm 4 Cam 20BSYWBL2-2010-19
    Size 3 - 10.5mm 4 Cam 20BSYWBL3-2010-19
    Size 4 - 10.5mm 6 Cam 20BSYWBL4-2010-19
    Size 5 - 10.5mm 6 Cam 20BSYWBL5-2010-19
    Size 6 - 10.5mm 6 Cam 20BSYWBL6-2010-19
    Size 7 - 10.5mm 6 Cam 20BSYWBL7-2010-19
     7.7 Cam - 22BS Assembly
    Size 1 - 7.7mm 4 Cam 22BSYWBL1-2207-19
    Size 2 - 7.7mm 4 Cam 22BSYWBL2-2207-19
    Size 3 - 7.7mm 4 Cam 22BSYWBL3-2207-19
    Size 4 - 7.7mm 6 Cam 22BSYWBL4-2207R-19
    Size 5 - 7.7mm 6 Cam 22BSYWBL5-2207R-19
    Size 6 - 7.7mm 6 Cam 22BSYWBL6-2207R-19
    Size 7 - 7.7mm 6 Cam 22BSYWBL7-2207R-19
     9.0 Cam - 22BS Assembly
    Size 1 - 9.0mm 4 Cam 22BSYWBL1-2209-19
    Size 2 - 9.0mm 4 Cam 22BSYWBL2-2209-19
    Size 3 - 9.0mm 4 Cam 22BSYWBL3-2209-19
    Size 4 - 9.0mm 4 Cam 22BSYWBL4-2209-19
    Size 5 - 9.0mm 6 Cam 22BSYWBL5-2209R-19
    Size 6 - 9.0mm 6 Cam 22BSYWBL6-2209R-19
    Size 7 - 9.0mm 6 Cam 22BSYWBL7-2209R-19
     10.5 Cam - 22BS Assembly
    Size 1 - 10.5mm 4 Cam 22BSYWBL1-2210-19
    Size 2 - 10.5mm 4 Cam 22BSYWBL2-2210-19
    Size 3 - 10.5mm 4 Cam 22BSYWBL3-2210-19
    Size 4 - 10.5mm 6 Cam 22BSYWBL4-2210-19
    Size 5 - 10.5mm 6 Cam 22BSYWBL5-2210-19
    Size 6 - 10.5mm 6 Cam 22BSYWBL6-2210-19
    Size 7 - 10.5mm 6 Cam 22BSYWBL7-2210-19
  • Yale DWS - Encloser(PDF, 6 MB)
