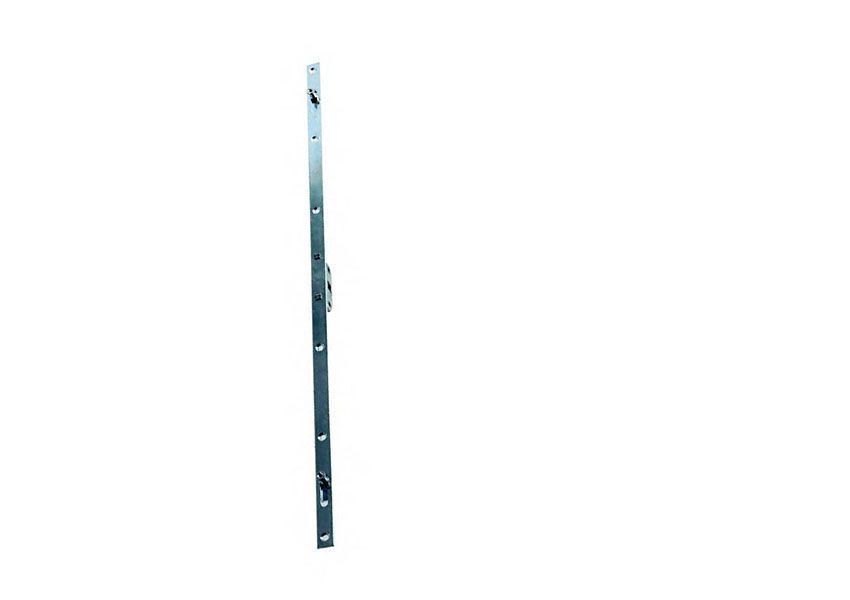

Ideal Mushroom Espag
Fits standard and reduced depth eurogrooves
Features

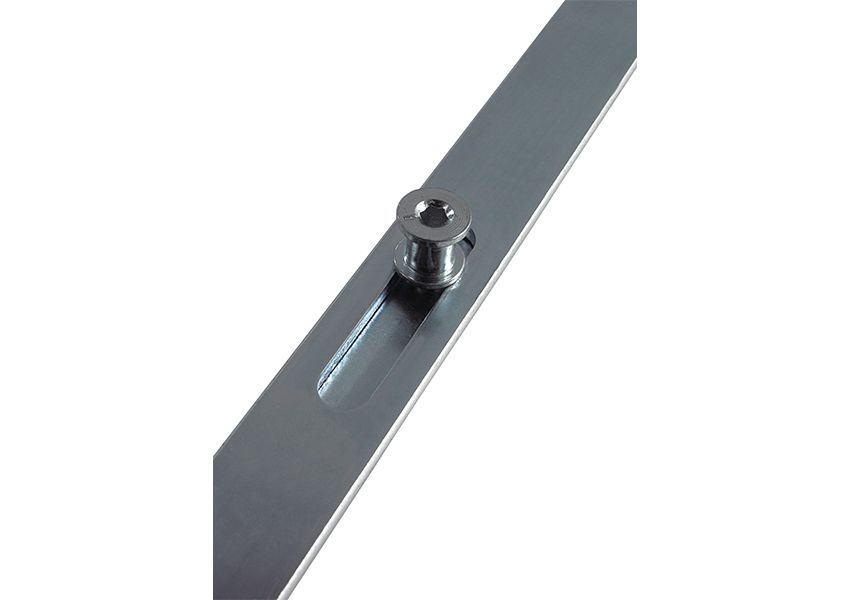

- 1, 2 or 3 mushroom-headed steel cams
- Compression adjustable mushroom cams (+/- 1mm)
- Option of 8mm or 9mm cams
- 16mm travel
- Option of 20mm or 22mm backset
- 16mm Mild steel faceplate
- Size range: 110min - 1200max
- U-track version available to suit profile systems without eurogroove
- Simple to fit
- Strikers available on request
Backset (mm) Size (mm) Application Range (mm) Cams 8mm Cams 9mm Cams 20 110 140-280 1 33401 33421 20 250 281 430 2 33402 33422 20 400 431 630 2 33404 33424 20 600 631 830 2 33406 33426 20 800 831-1030 2 33408 33428 20 1000 1031-1230 3 33410 33430 20 1200 1231-1400 3 33412 33432 22 110 140-280 1 33601 33621 22 250 281 430 2 33602 33622 22 400 431 630 2 33604 33624 22 600 631 830 2 33606 33626 22 800 831-1030 2 33608 33628 22 1000 1031-1230 3 33610 33630 22 1200 1231-1400 3 33612 33632
