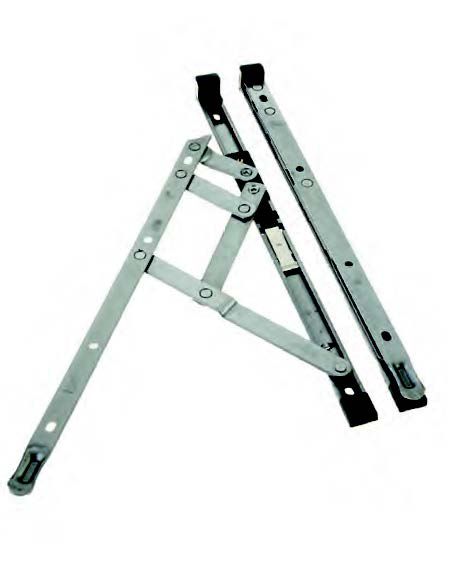

iDeal Restricted Hinge
Enables casement windows to comply with the safety requirements of BS6375 Part 2 (350 Newtons)
Features
Integral restrictor limits opening to 100mm
‘Quick release’ button for cleaning and ventilation that relocates automatically
Suitable for both top hung and side hung casement windows
Manufactured from Ferritic (430) stainless steel
Stack heights - 13mm, 17mm
Top hung sizes - 12”, 16”, 20”, 24”
Top hung recommended maximum sash weight - 20kg - 38kg
Side hung sizes - 12”, 16”
Side hung recommended maximum sash weight - 18kg - 24kg
Operational reliability - tested to 20,000 cycles
Weather resistance - tested to BSEN 1670 Grade 4, achieving 240 hours salt spray
Description Size (") Opening (°) Width (mm) Height (mm) Weight (kg) 13mm Stack Height 17mm Stack Height Top Hung Pair 12 10/60 1300 600 20 22752 22772 Top Hung Pair 16 10/46 1300 700 22 22756 22776 Top Hung Pair 20 7/45 1300 900 24 22760 22780 Top Hung Pair 24 7/43 1300 1500 38 22764 22784 Side Hung Right Hand 12 10/60 600 1300 18 22802 22822 Side Hung Left Hand 12 10/60 600 1300 18 22803 22823 Side Hung Right Hand 16 10/46 700 1300 24 22804 22824 Side Hung Left Hand 16 10/46 700 1300 24 22805 22825
