Heavy Duty Easy Clean Hinges
Suitable for use with triple glazing in standard profile systems and wide side hung sashes

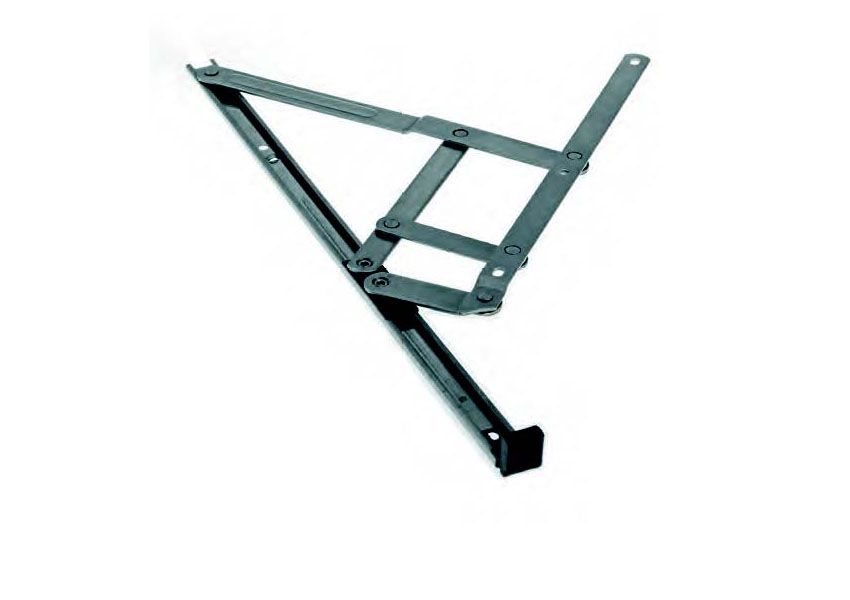

Heavy Duty Friction Hinge
For use with triple glazing in standard profile systems and wide side hung sashes
Features
- Can be fitted to a standard 16mm track without any modifications to the profile
- 33% stronger than a standard side hung friction stay
- Manufactured from Ferritic (430) stainless steel
- Supports the additional weight of triple glazed units in their frames whilst maintaining smooth operation
- 40kg maximum sash weight
- 900mm maximum rebate width
- Stack heights - 14mm, 17mm
- Size - 16”
- Independently tested to PAS24: 2012
- Weather resistance - tested to BSEN 1670 Grade 4, achieving 240 hours salt spray
- Mechanical load tested to BS6375-2
Description Size (") Opening (°) Width (mm) Height (mm) Weight (kg) 14mm Stack Height 17mm Stack Height Heavy Duty Side Hung 16 84 (+/- 2) 900 1300 40 022836 022846
